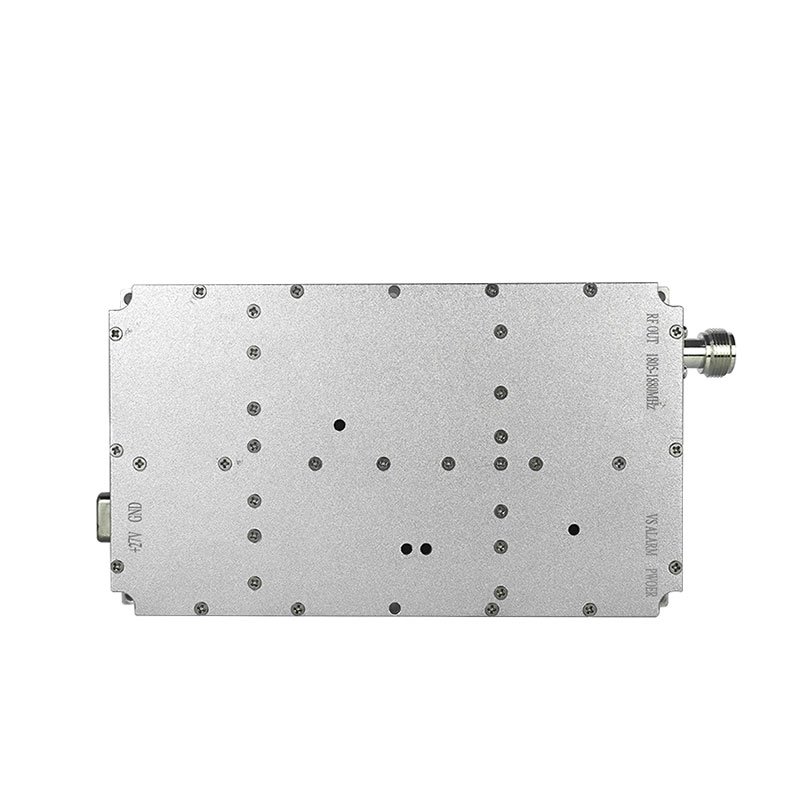

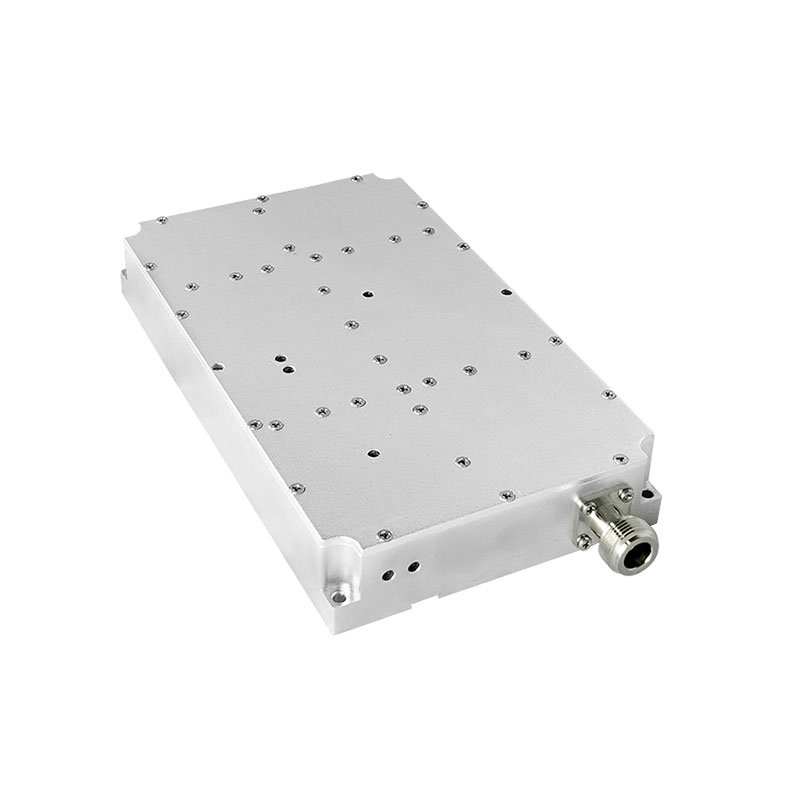

High Power Prison 100W Mobile Phone WIFI Signal Jammer Blocker Module

This High Power Prison 100W Mobile Phone WIFI Signal Jammer Blocker Module is widely applied in the prison jamming system for long range signal blocking about 100-200 meter, and it needs to be combined with the heat sink, cool fan, antenna and the right power supply. ELUFA is the professional factory for the signal jammer and jammer module. We actually produce the 100W module over 100W considering the attenuation in the real application in the jamming system. More, our QC will do the quality checking including the spectrum analyse tests and power meter with 100% pass rate.

This High Power Prison 100W Mobile Phone WIFI Signal Jammer Blocker Module is customized according to customer need. The frequency can be 20MHz-6GHz, and output power can be 5W to 100W depends on the real need. Customer can use it to assembly up their own jamming system such as the mobile phone WIFI jamming system, drone jamming system in the prison system, police station, government, military field and the chemical factory. The package is a standard and safe one with the neutral and thick kraft paper box and pearl foam inside. Customer has no worry about the shipping even a long way.

High Power Prison 100W Mobile Phone WIFI Signal Jammer Blocker Module Specification

No.	Parameter	Value	Unit
1	Frequency	Customized	MHz
2	Output Power	100	W
3	Gain	50	dB
4	Current	10	A
5	Size	20210227	mm
6	Weight	910	g
7	Output Connector	N	50Ω
8	Work Voltage	24/28/32	V
9	Work Temperature	-40~+65	℃

Customized 100W jammer module Data

No.	Item	Band	Frequency	Output Power
1	Drone Defense	433 MHz	433 MHz	5W/10W
				30W
				50W
				100W
		900 MHz GPS L2 1.2G GPSL3/L4 1.4G GPS L1 1.5G	840-920 MHz 1100-1280 MHz 1370-1390 MHz 1560-1620 MHz	5W/10W
				20W
				30W
				40W
				50W
				100W
		WIFI 2.4G	2400-2500 MHz	5W/10W
				20W
				30W
				40W
				50W
				100W
				200W
		WiFi 5.2G WiFi 5.7G WiFi 5.8G WIFI5.8G1	5150-5350 MHz 5550-5750 MHz 5725-5850 MHz 5700-5900MHz	5W
				10W
				20W/30W
				40W
				50W
				100W
2	WIFI 6G	WIFI 6G	5925-6425 MHz 6425-6525 MHz 6525-6875 MHz 6875-7125 MHz	30W
				40W
3	Mobile Phone 2345G	4G LTE 700 4G LTE 800 CDMA 800 GSM 900 DCS1800 PCS1900 3G CDMA 4G LTE 2600 .	725-770 MHz 791-821 MHz 851-894 MHz 925-960 MHz 1805-1880 MHz 1930-1990 MHz 2110-2170 MHz 2500-2690 MHz	5W/10W
				20W
				30W
				40W
				50W
				100W
		5G More	3300-3500 MHz 3400-3600 MHz 3600-3800 MHz 4500-4700 MHz 4700-4750 MHz 4800-4940 MHz 4900-5100 MHz	5W
				10W
				20W
				30W
				50W
4	Other	VHF Lojack track UHF/RC 433 RC 315	135-175 MHz 165-175 MHz 400-470 MHz 315 MHz	5W/10W
				30W
				50W
				100W

High Power Prison 100W Mobile Phone WIFI Signal Jammer Blocker Module
