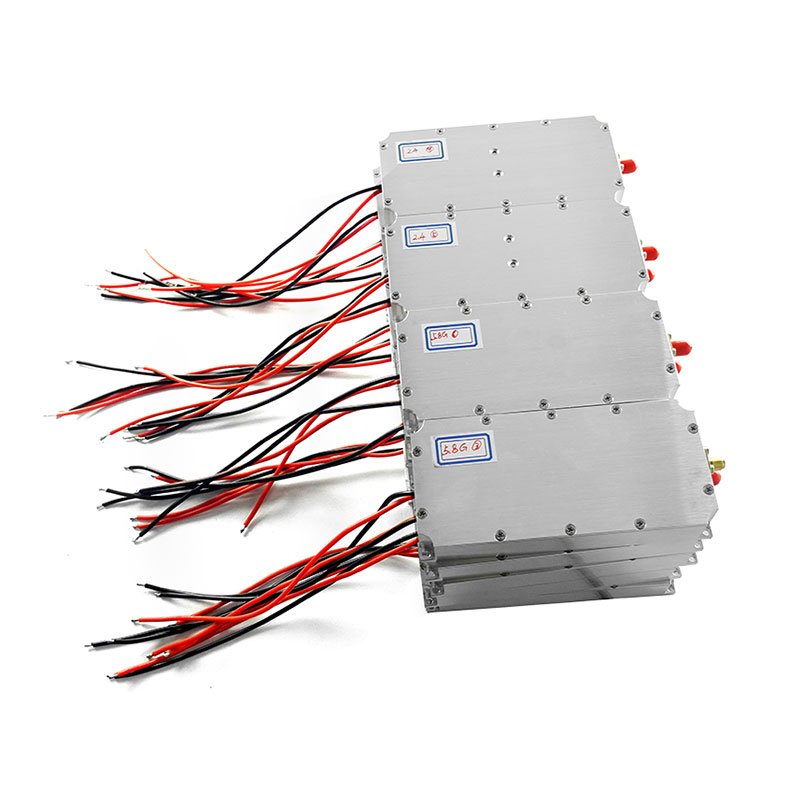

Analog 840 930 MHz 40W Drone Counter CUAS Signal Jamming Module
,

Analog 840 930 MHz 40W Drone Counter CUAS Signal Jamming Module

Analog 840 930 MHz 40W Drone Counter CUAS Signal Jamming Module is a key part of the large CUAS drone defense system especially in the large base station, the car load drone counter application and the combination system of drone detector and drone jammer. ELUFA is eager to meet this new need and offer customer the multiple choices for the frequency and the output power. Our jammer module will consider the attenuation from antenna, connector and coxial, and do the actual output over 40W when customer needs 40W.

Categories: ,

Analog 840 930 MHz 40W Drone Counter CUAS Signal Jamming Module

The drone Counter Signal jamming module is customized for Frequency and Output. The frequency is from 20MHz to 6GHz (WIFI 6 GHz is available too. ) The output power is customized 5W to 100W. We will do 100% spectrum analyzer tests before delivery to ensure its qualification. If customer need, we can offer the test sheet and paste the data of each module on a sticker. The jammer module is packed in a durable and neutral kraft paper box to ensure its safety in transportation.

Drone Counter Signal jamming module Specification

No. Item Data Unit Notes
1 Frequency Customized MHZ
2 Work Temperature -40~+65 ℃
3 Output Power 40 W
4 Work Voltage 24/28/32 V
5 Max Gain 46 dB
6 Flatness ±3 dB
7 Max Current 3.2 A
8 Output VSWR ≤1.5
9 Output Connector N/F 50Ω customized
10 Power Amplifier Efficiency 43 when Max Output
11 Switch Control high low
level current		 V 0V off /0.6 on
12 Size 134*59*19 mm
13 Weight 0.249 Kg

=
