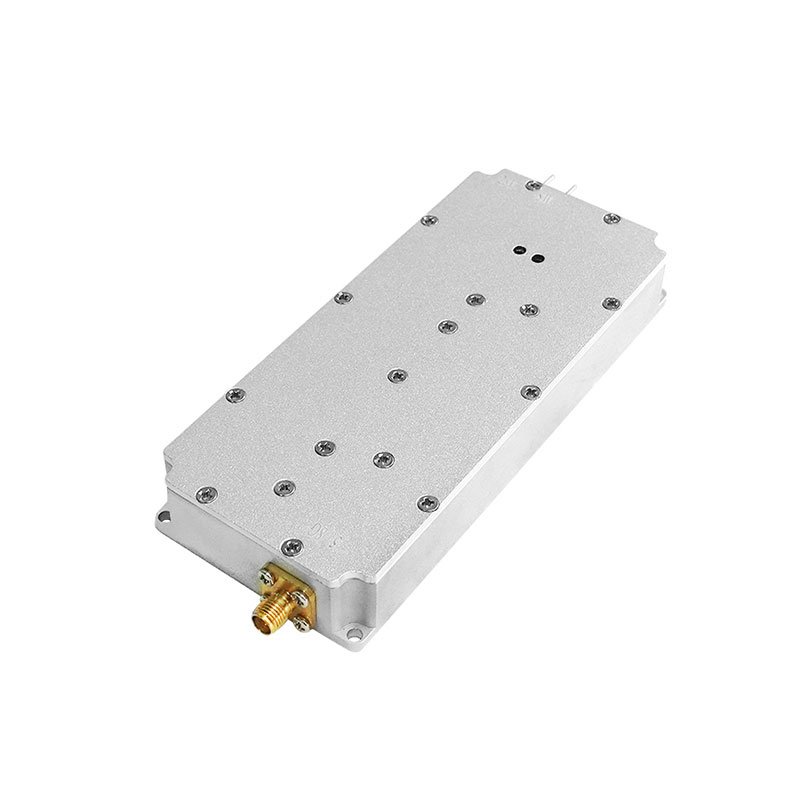

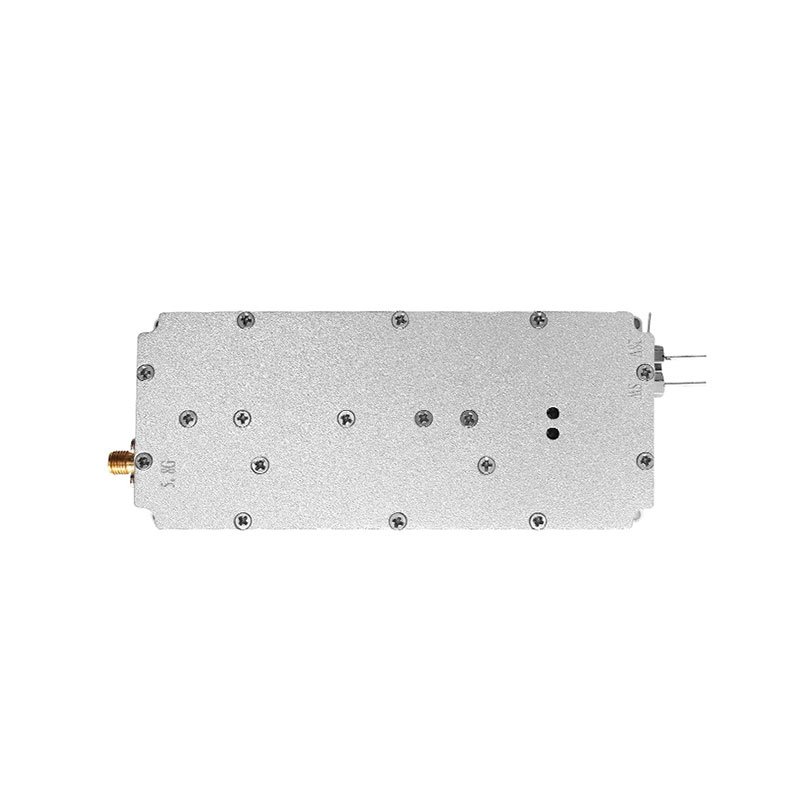

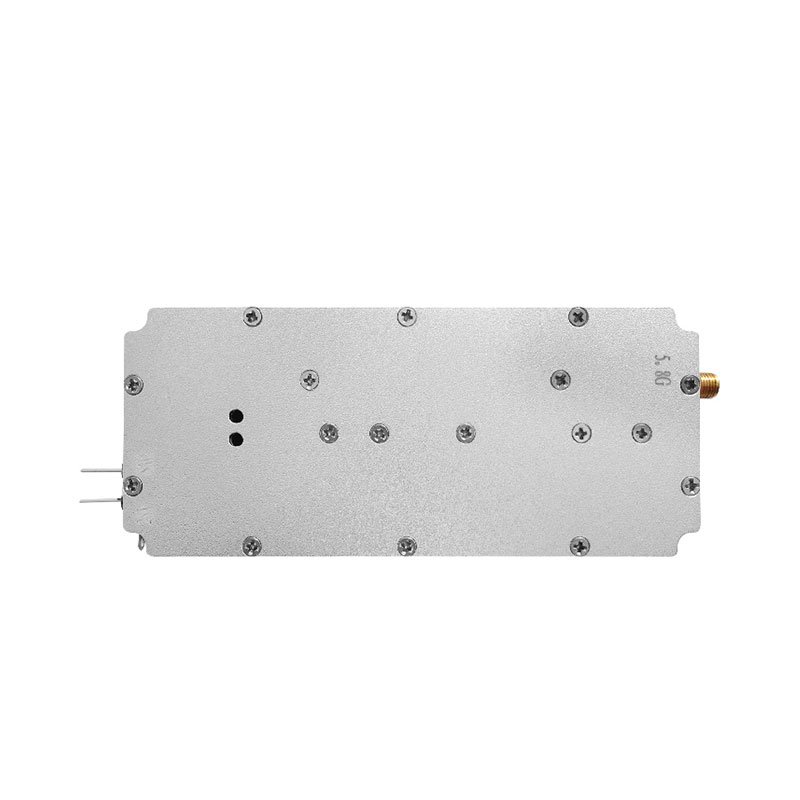

2.4GHz 50W Anti Drone UAV FPV GPS Shield Jamming Module
2.4GHz 50W Anti Drone UAV FPV GPS Shield Jamming Module - Image 2
2.4GHz 50W Anti Drone UAV FPV GPS Shield Jamming Module - Image 3
,

2.4GHz 50W Anti Drone UAV FPV GPS Shield Jamming Module

The 2.4GHz 50W Anti Drone UAV FPV GPS Shield Jamming Module is of a wide need now. Cause 2.4GHz is the mostly applicable in the drone remote control signal of the commercial drone such as DJI, Autel and Phantom etc. Customer needs a stronger suppressing signal to shield the 2.4GHz radio frequency applied in the drone ground control, and ELUFA develops the powerful 50W (100W and 200W is available too) signal blocker module to shield the drone in a longer range and stable effect.

Categories: ,

2.4GHz 50W Anti Drone UAV FPV GPS Shield Jamming Module

The 2.4GHz drone shield jamming module can be max 200W to combine itself with the large anti drone system or the drone detector system. The 40W and 50W is of the most popular use in the finished product of anti drone application such as the anti drone gun, man pack drone jammer, trolley case drone jammer, fixed OMNI directional anti drone system and the car load drone jammer.

Drone shield jamming module Specification

No. Item Data Unit Notes
1 Frequency Customized MHZ
2 Work Temperature -40~+65 ℃
3 Output Power 50 W
4 Work Voltage 24/28/32 V
5 Max Gain 47 dB
6 Flatness ±3 dB
7 Max Current 4.0 A
8 Output VSWR ≤1.5
9 Output Connector N/F 50Ω customized
10 Power Amplifier Efficiency 43 when Max Output
11 Switch Control high low
level current		 V 0V off /0.6 on
12 Size 140*55*20 mm
13 Weight 0.268 Kg

=
